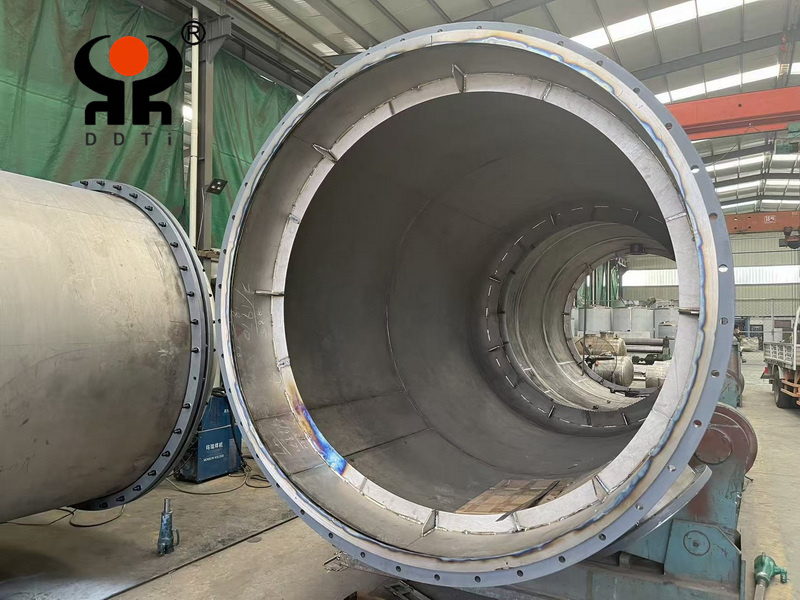

Titanium-steel composite storage tank

DesignationGr.1 (TA1)，Gr.2 (TA2)，Gr.7 (TA9)，Gr.12 (TA10)，Gr.5 (TC4)

StandardGB/T 150.1~150.4-2011，HG/T 3108-2012，GB/T 3621-2007 ，GB/T 2965-2007，GB/T 16598-2013，GB/T 3624-2010

OverviewIn the fields of chemical raw material storage, metallurgical waste liquid storage, and oil and gas field extraction medium storage

Hotline：

+86-917-3412107　+86-18091715917
Product Introduction：


Baoji Dingding Titanium | Optimal Solution for Corrosion Resistance and Cost of Customized Titanium Steel Composite Storage Tanks

In the fields of chemical raw material storage, metallurgical waste liquid storage, and oil and gas field extraction medium storage, titanium steel composite storage tanks have become a cost-effective choice for storing corrosive materials due to their core characteristics of "titanium layer corrosion resistance+steel based load-bearing". Baoji Dingding Titanium relies on the advantages of the "China Titanium Valley" composite technology to provide customized storage tanks made of TA2/TA9/TA10 titanium materials and carbon steel composite. This not only solves the corrosion problem of traditional carbon steel storage tanks, but also reduces costs by more than 30% compared to pure titanium storage tanks, serving enterprises such as Wanhua Chemical and Sinopec.

1、 Core advantage: Dual empowerment of composite materials

Accurate corrosion resistance

The inner layer of TA2/TA9/TA10 titanium material (thickness 1-5mm) is resistant to strong acid, high salt, and chloride ion corrosion. The corrosion rate in 5% sulfuric acid is ≤ 0.0001mm/year, eliminating material pollution.

Strong load-bearing capacity

The outer carbon steel (Q345R/Q245R) provides stable load-bearing capacity, and the overall compressive strength of the storage tank is ≥ 345MPa, suitable for high-pressure storage requirements.

cost optimization

The titanium steel composite structure reduces the cost of pure titanium storage tanks by 30% -50%, balancing performance and economy, and is suitable for large volume storage scenarios.

Full-scenario adaptation

Capacity of 10-1000m ³, supporting vertical/horizontal structures; Suitable for temperature range of -20 ℃~300 ℃ and pressure range of 0.1-4.0MPa.

2、 Core specifications and adaptation scenarios


Adaptation field Titanium layer material Core specifications Compatible materials Highlights of the composite process
Chemical anti-corrosion TA2/TA10 Volume: 50-1000 cubic meters, titanium layer thickness: 2-5mm, pressure: 0.1-2.5MPa Waste liquid of sulfuric acid, hydrochloric acid, chlor-alkali solution and fluoride salt Explosive composite process, bonding strength ≥200MPa, no risk of delamination
Oil and gas field exploitation TA9/TA10 Volume: 10-500m³, titanium layer thickness: 1.5-3mm, temperature resistance: ≤180℃ Sulfur-containing crude oil, produced water, and fracturing fluid Resistant to hydrogen sulfide corrosion, suitable for high-salt working conditions in oil and gas fields
Metallurgy and Chemical Industry TA2/TA10 Volume: 30-800m³, titanium layer thickness: 2-4mm, equipped with a stirring device Heavy metal leachate, smelting waste liquid, electrolyte The inner wall is polished to Ra≤1.6μm, reducing material residue and scaling
Light industry and chemical industry TA2 Volume: 10-200 cubic meters, titanium layer thickness: 1-2mm, pressure: ≤1.0MPa Acetic acid, citric acid, food additive solutions Low-cost composite solution, in compliance with food contact safety standards

Customized service: Support CAD/ProE drawing deepening, choose TA2/TA9/TA10 titanium layer material and thickness as needed; Provide system integration for heating, stirring, liquid level monitoring, etc; The titanium steel composite process is independently controllable, with urgent orders delivered within 50 days, including on-site installation, commissioning, and pressure testing.

3、 Quality and Service Assurance

1. Controllable raw materials: Titanium material with ICP-MS report, carbon steel meets GB/T 3531 standard, dual material traceability;

2. Independent composite: The explosive composite/rolling composite process is independently completed, and the qualified rate of joint surface inspection is high;

3. Multi dimensional testing: all passed water pressure (1.5 times rated pressure), airtightness, corrosion, and ultrasonic testing;

4. Service guarantee: Chemical grade warranty for 8 years, providing regular corrosion testing services and 24-hour technical response.

Solution consultation: Send operating condition parameters and storage requirements to 530975155@qq.com Provide feedback on customized solutions within 4 hours
