Application fields of titanium and titanium alloys

Application area

Specific use

Space field

Components such as jet engine components, fuselage components, rockets, satellites, missiles, compressor and fan blades, disk, casing, guide vane, shaft, landing gear, flap, baffle, engine compartment, baffle, wing beam, fuel tank, booster.

Chemistry, petrochemicals and general industry

For chlor alkali, soda ash, plastics, petroleum chemical industry, metallurgy, salt and other industrial electrolytic cell, reactor, distillation, concentrator, separator, heat exchangers, piping, electrode etc.

Warship

Submarine pressure hull, propeller, water jet propeller, sea water heat exchange system, ship pump (valve and pipe)

Oceanographic engineering

Pumps, valves, fittings, etc. for pipeline and offshore oil drilling for desalination

Biological medicine

Artificial joints, artificial teeth and orthodontic teeth, cardiac pacemakers, cardiovascular stents, surgical instruments, etc.

Sports apparatus

Golf, tennis, badminton, billiards club, mountaineering rod, ski poles, ice skates etc.

Articles for daily use

Eyeglasses, watches, crutches, fishing poles, kitchen utensils, digital product shells, crafts, ornaments, etc.

Construction industry

The roofs, walls, ornaments, signs, railings, pipes, etc. of a building

Automobile industry

Automobile exhaust and silencing system, load-bearing spring, connecting rod and bolt, etc.

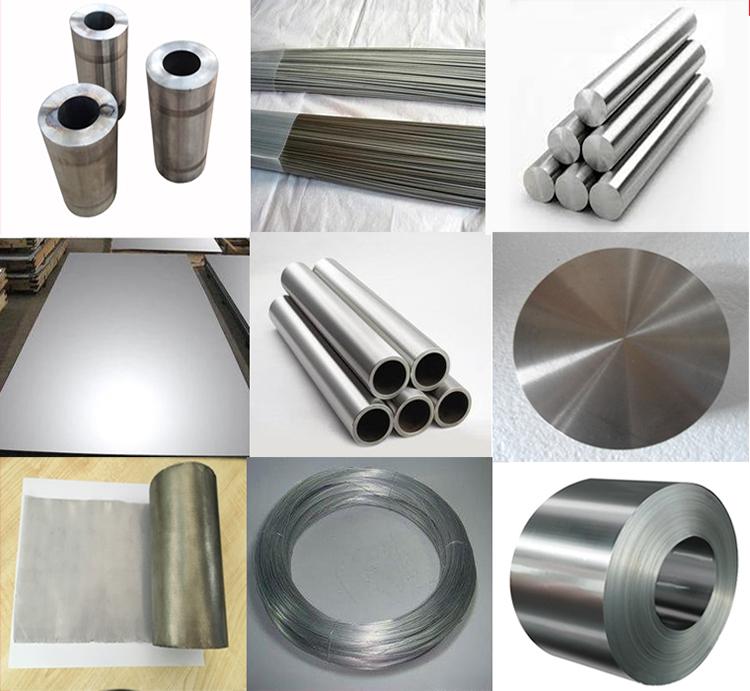

Product name

Grade

Specifications(mm)

Standard of execution

Titanium and titanium alloy tubes

Gr1, Gr2,Gr3, Gr7,Gr11, Gr12

Rolling seamless tube (3-114) * (0.2-0.6) W x L
Welded pipe (10-40) x (0.5-2.0) W x L
Extrusion tube (25-210) * (6.0-30) W x L

ASTM B338 ASTM B337

Titanium and titanium alloy wire

Gr1, Gr2,Gr3,Gr4,Gr5,Gr6, Gr7, Gr9, Gr11, Gr12

Straight wire: Dia0.8~7mm*L
Wire: Dia 0.08mm*L

ASTMB863，ASTMB348

Titanium and titanium alloy rods

Gr1, Gr2,Gr3,Gr4,Gr5,Gr6, Gr7, Gr9, Gr11, Gr12

Dia 6mm-Dia 120mm

ASTM B348

Titanium and titanium alloy plates

Gr1, Gr2,Gr3,Gr4,Gr5,Gr6, Gr7, Gr9, Gr11, Gr12

Thickness 2.0-30mm
Width 50-1000mm
Length 100-2000mm.
Bar: diameter 4-100mm
Within 3000mm of length

ASTM B265

Titanium and titanium alloy processing materials for surgical implants

Gr1,Gr2,Gr3,Gr4,Gr5,Gr23

Thickness 2.0-30mm
Width 50-1000mm
Length 100-2000mm.
Bar: diameter 4-100mm
The length is within 3000mm.

ASTM F67
ASTM F136

Technical specification for titanium rods, silk, forgings and ring materials

Gr1, Gr2,Gr3,Gr4,Gr5,Gr6, Gr7, Gr9, Gr11, Gr12

Size processing according to customer's requirements

AMS4928P
